100 – 13,500+ litres storage capacity

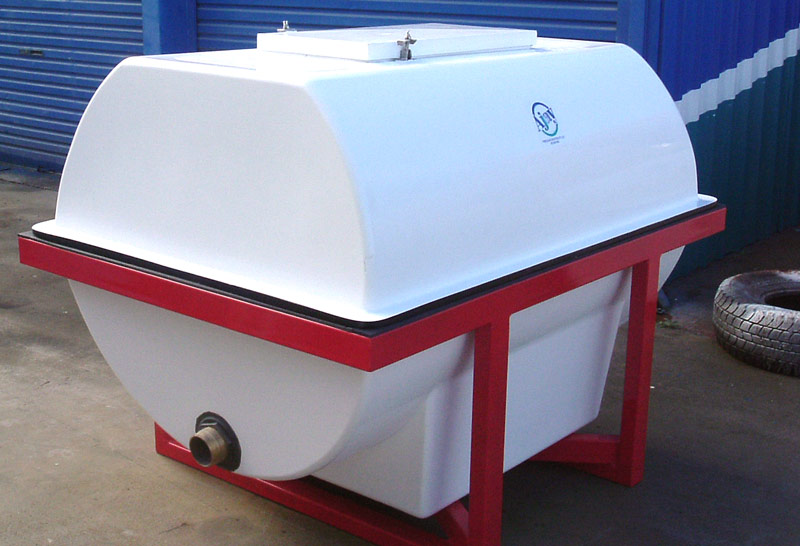

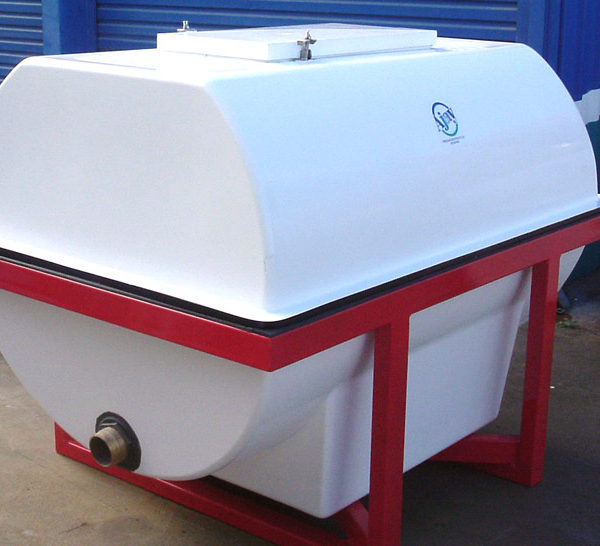

Our transporter tank range is designed for constant highway use and tanks greater than 300 litres are heavily baffled to reduce surge. The tanks are available with separate compartments, custom sumps and can even be insulated for fish transportation. The tanks are food grade and can be used for transporting potable water. All tank frames are quality Duragal steel and are designed and manufactured on site.
Models and Specifications:
Models and Specifications:
| CODE | LITRES | SPECIFICATIONS (Dimensions) | ||||
| TP22 | 100 | .700M X .550 X .440 HIGH | ||||
| TP50 | 220 | 1.200M X .570 X .520 HIGH | ||||
| TP130 | 600 | 1.380M X .920 X .900 HIGH | ||||
| TP200 | 950 | 1.200M X 1.200 X .900 HIGH | ||||
| TP300 | 1350 | 1.650M X 1.180 x 1.140 HIGH | ||||
| TP600 | 2750 | 2.270M X 1.680 X 1.160 HIGH | ||||
| TP1300 | 5750 | 3.260M X 2.330 X 1.150 HIGH | ||||
| TP1650 | 7500 | 3.260M X 2.330 X 1.400 HIGH | ||||
| TP2000 | 9050 | 3.260M X 2.330 X 1.700 HIGH | ||||
| TP3000 | 13500 | 4.900M X 2.330 X 1.700 HIGH | ||||
